E-bike Specification
E-bike motor Bosch Performance Line CX (Smart System) Drive Unit with 85Nm
maximum torque, 600W of peak power and 250W of nominal
power. Features four power mode settings including Tour+ and
eMTB

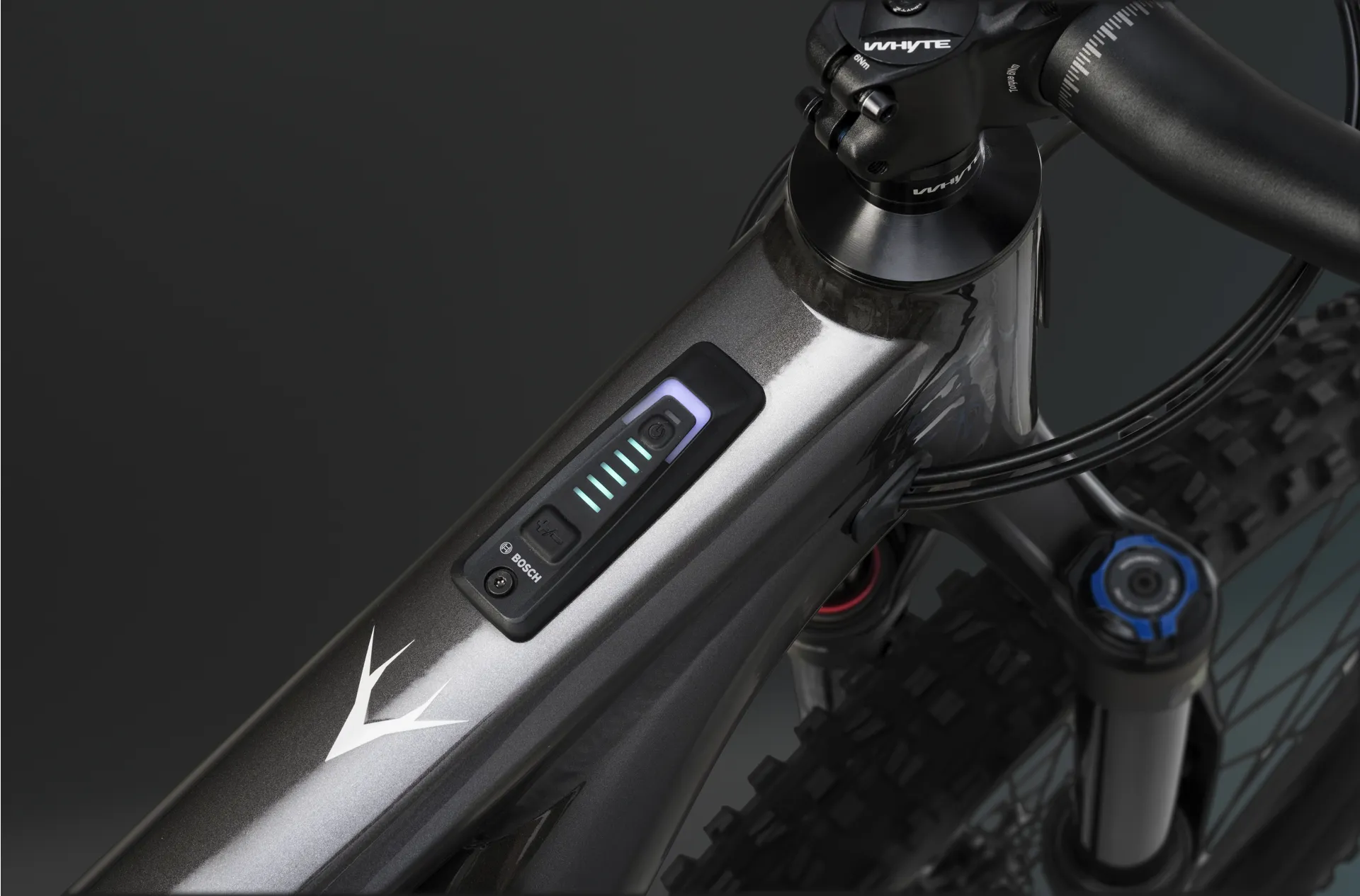

E-bike display Bosch System controller mounted within the top tube, paired
with the discrete bar mounted Mini Remote. Also connects to the
Bosch eBike Flow smartphone app to give you even more insight
and control at your fingertips.
E-bike battery Bosch PowerTube 600Wh, perfectly integrated into the frame
with an intuitive lockable mechanism for easy removal.
E-bike battery charger Charger 4A (230V)

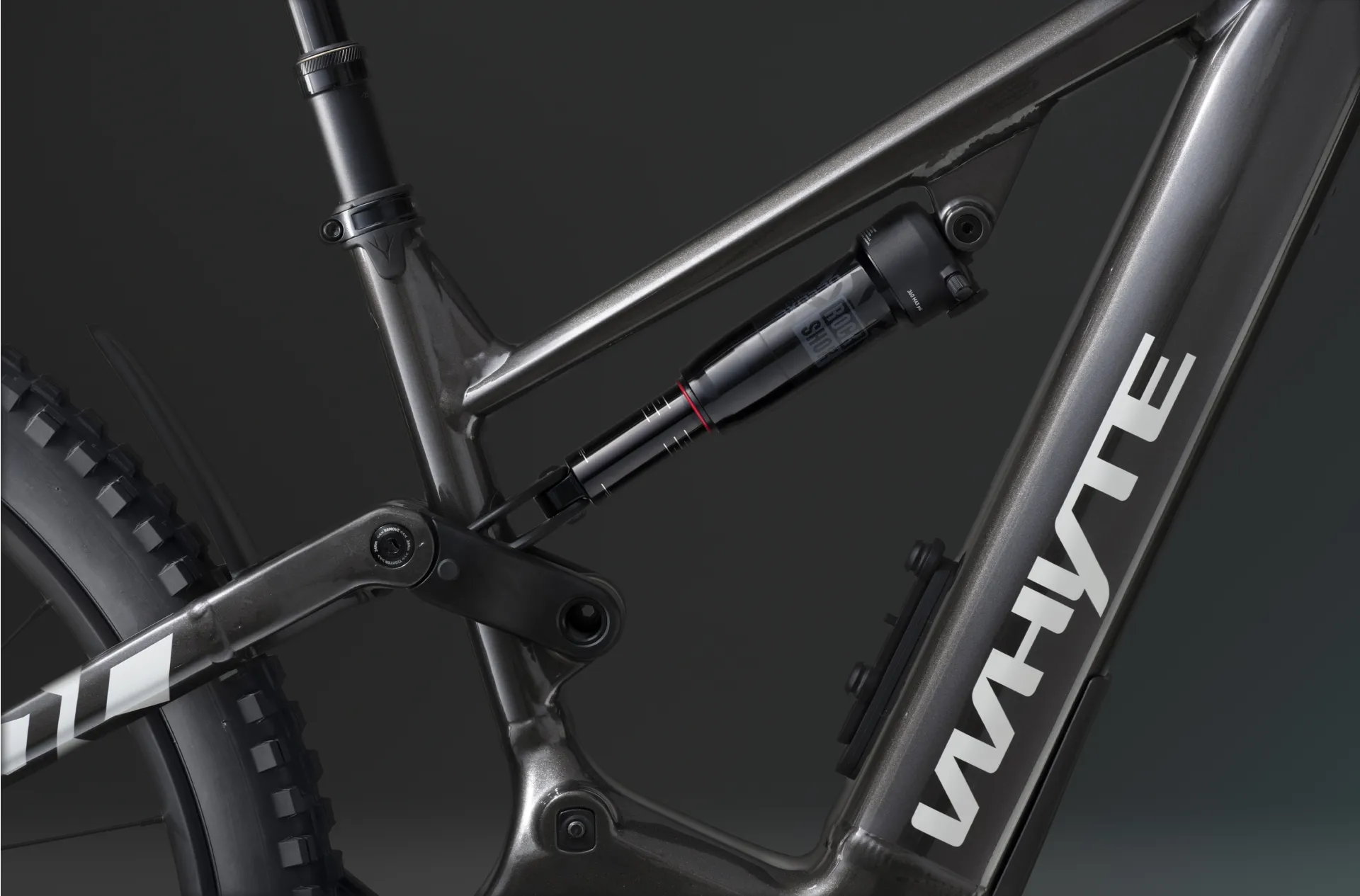

Shock stroke & sag 57.5mm/16mm
Reducer bush widths 25mm
Eye to eye length 230mm
General Bike Specification
Sizes available S, M, L, XL

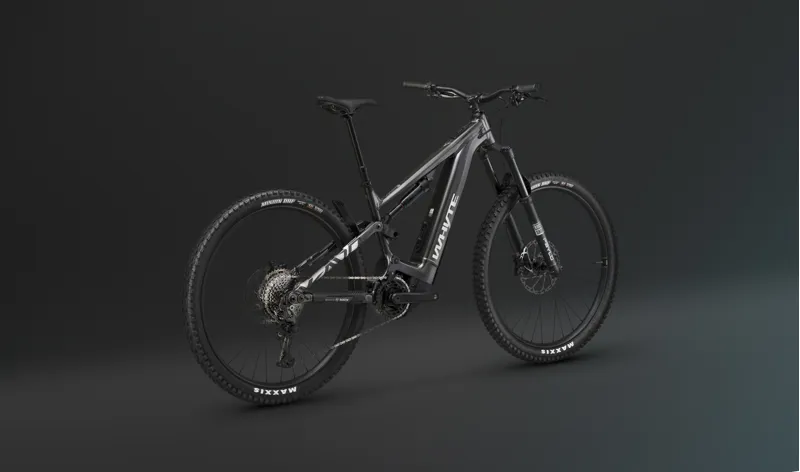

Colour Gloss dark silver
Frame 6061 alloy, hydroformed T6 aluminium, multi-butted, custom drawn, tapered
headtube, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost
dropouts

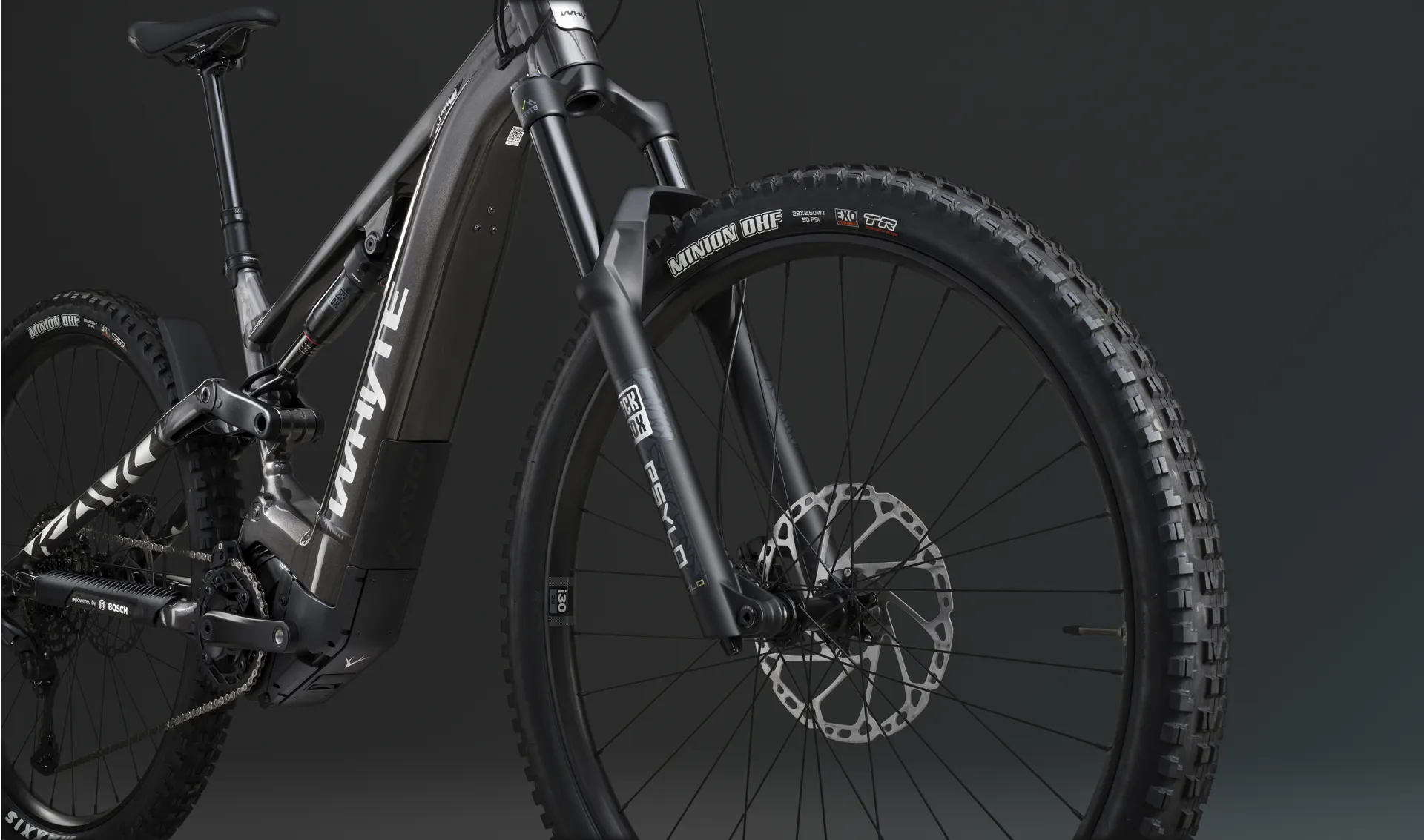

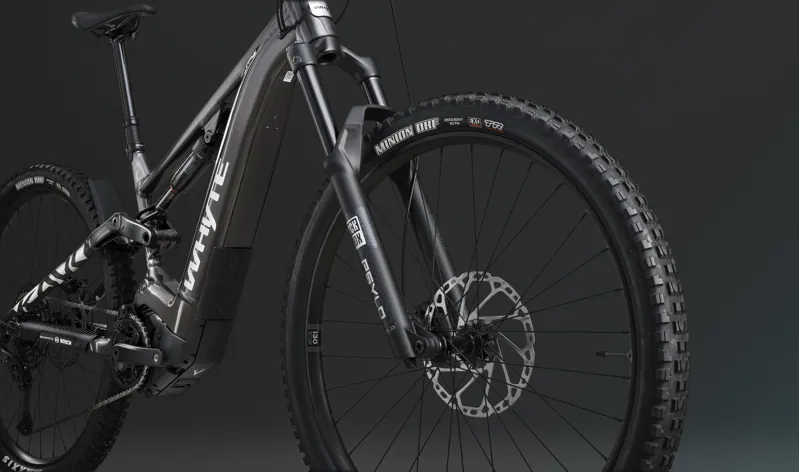

Fork RockShox Psylo Gold, 160mm travel, DebonAir, Isolator RC damper, Fast Black
coating, tapered steerer, 110 x 15mm Boost
Rear shock RockShox Deluxe Select R, DebonAir, Fast Black coating, adjustable rebound,
custom tuned for Whyte
Headset 1-1/8in upper and 1.5in lower with sealed bearings
Rear hub Shimano FH-TC600, Centre Lock, 12mm x 148mm Boost spacing, HG freehub,
32 hole
Front hub Shimano FH-TC500, Centre Lock, 15mm x 110mm Boost spacing, 32 hole
Spokes 14g stainless black, brass nipples
Rims WTB ST Tough, 30mm internal
Tyres Maxxis Minion DHF, EXO casing, wire bead 29in x 2.5in
Shift levers Shimano SL-U6000, 11 speed Cues
Front derailleur N/A
Rear derailleur Shimano RD-U6000 GS, 11 speed Cues
Cassette Shimano CS-LG400, Cues 11 speed, 11-50T
Chain KMC eGlide Sport, 11 speed Cues
Crankset Whyte 160mm ISIS arms, Direct Mount 36T chainring, T-Type
Bottom bracket N/A
Seatpost TranzX +RAD 30.9mm, adjustable, size-specific drop (size S: 150mm travel; sizes
M/L: 170mm travel; size XL: 200mm travel)
Seat Whyte Custom
Bar Whyte Custom 6061 alloy, 30mm rise, 35mm bar bore, 800mm wide
Stem Whyte, 35mm extension, 35mm bar bore
Grips Whyte Enduro lock-on
Front brakes Shimano M4100 four piston with sintered metal pads, 220mm Centre Lock rotors

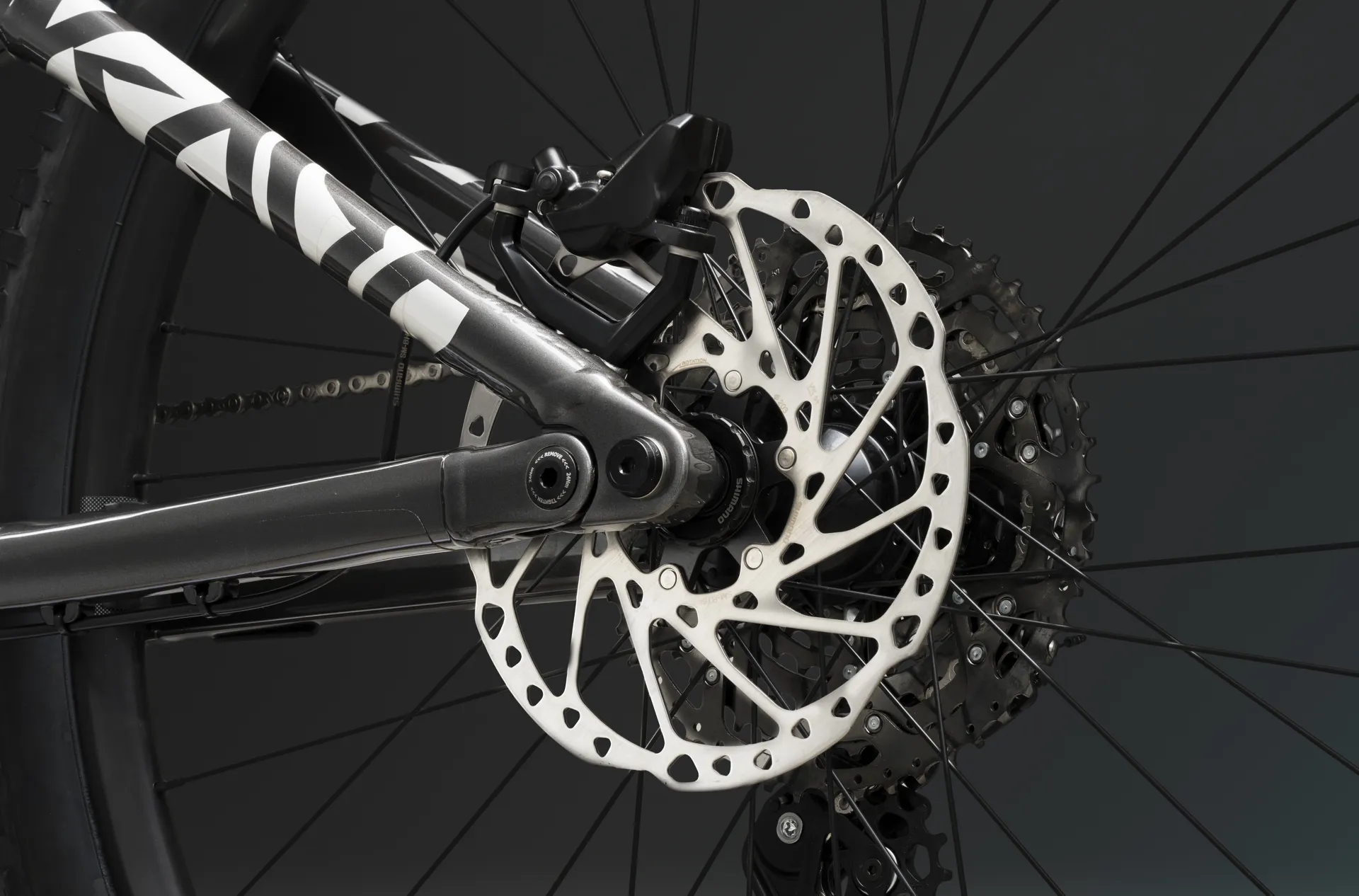

Rear brakes Shimano M4100 four piston with sintered metal pads, 203mm Centre Lock rotors
Brake levers Shimano M4100
Pedals Fibre reinforced composite platform
