FRAMESET
Seat Binder
Alloy, 38.6mm
Frame
FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot
DRIVETRAIN
Shift Levers
SRAM AXS POD Controller
Chain
SRAM X0 Eagle Transmission Flattop Chain
Cassette
SRAM X0 Eagle Transmission Cassette, 12spd, 10-52t
Rear Derailleur
SRAM X0 Eagle Transmission
Chainrings
SRAM Eagle Transmission 34t Steel, 104BCD
Crankset
Praxis Carbon/Custom Offset/ISIS Spindle Interface, 160mm
WHEELS
Inner Tubes
Standard, Presta Valve
Front Wheel
Roval Traverse Carbon 29
Rear Tire
Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
Front Tire
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"
Rear Wheel
Roval Traverse Carbon 27.5
E-BIKE

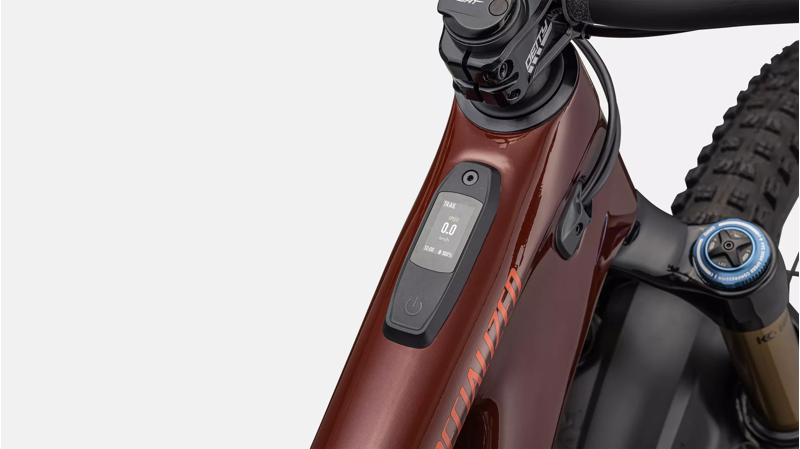

UI/Remote
Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote
Battery
Specialized M3-700, Integrated battery, 700Wh

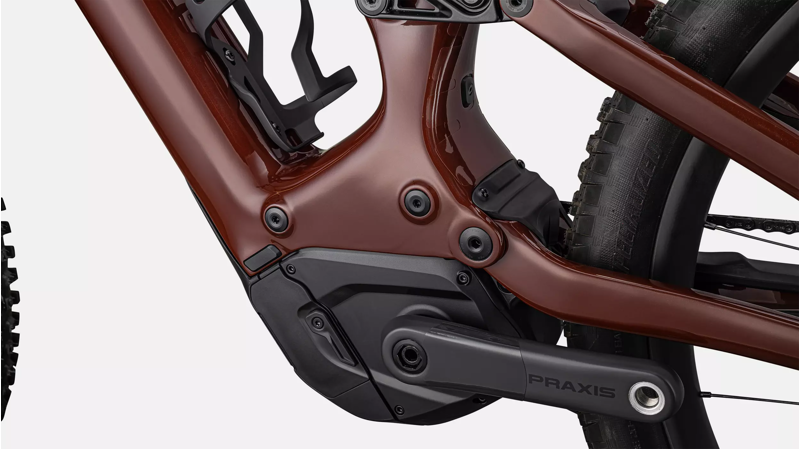

Motor
Specialized 2.2 Custom Rx Trail Tuned Motor
Charger
Custom charger, 42V4A w/ Rosenberger plug, 100-240V
Wiring Harness
Custom Specialized wiring harness
ACCESSORIES
SWAT
SWAT CC steerer tube integrated tool with chain tool and link
BRAKES
Front Brake
SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 200mm
Rear Brake
SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 200mm

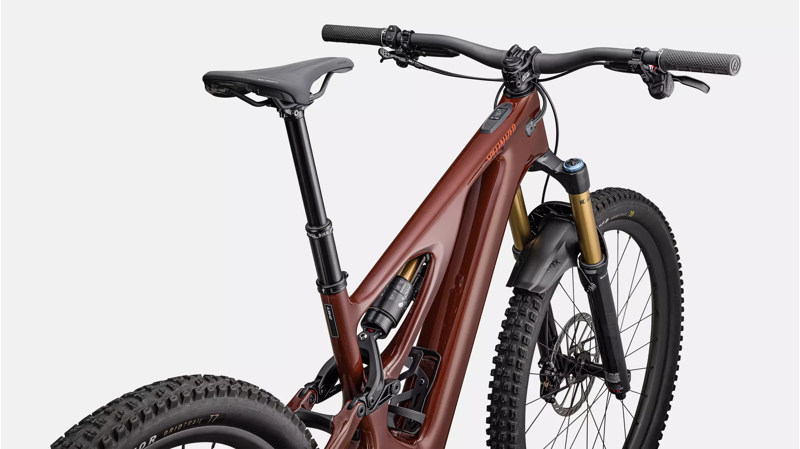

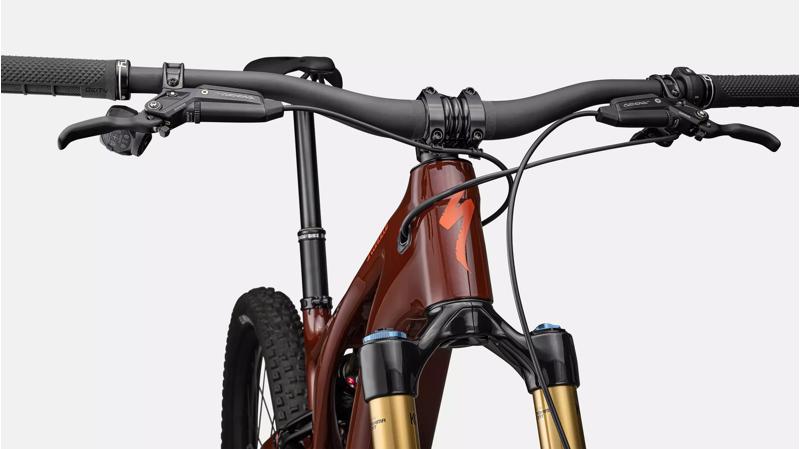

COCKPIT
Handlebars
Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm, 35.0mm
SeatPost
Bike Yoke Revive dropper Post, 34.9mm diameter, S2/S3: 160mm, S4/S5: 185mm, S6: 213mm
Stem
Deity, 35.0mm
Grips
Deity Grips
Saddle
Bridge, 155/143mm, Hollow Ti-rails
SUSPENSION

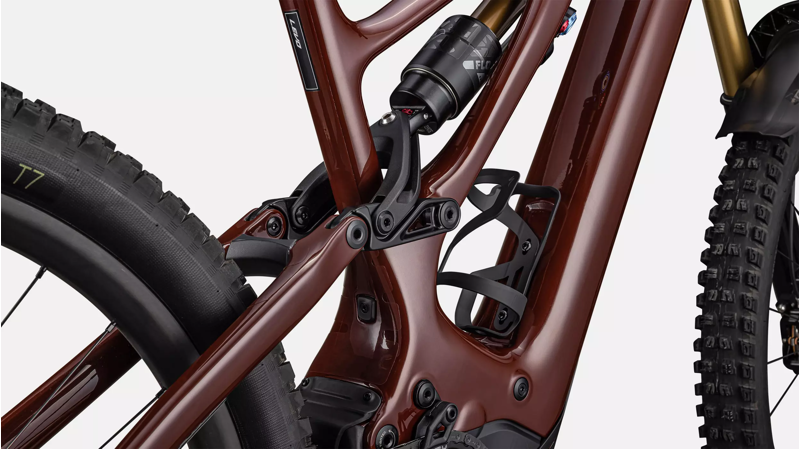

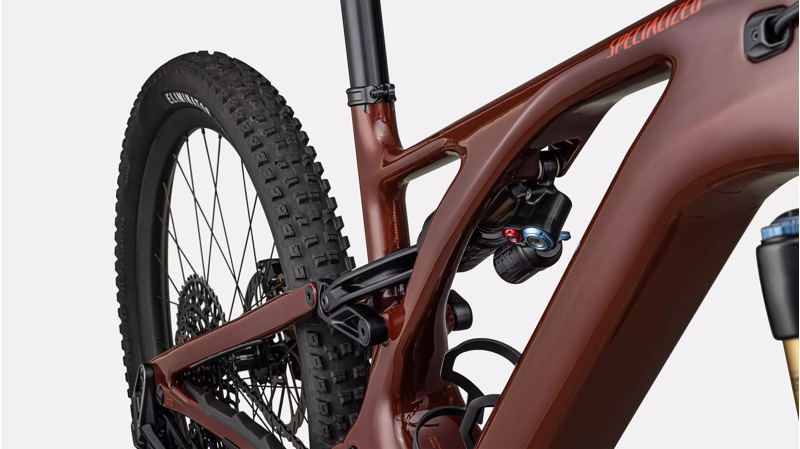

Rear Shock
Fox Float X2 Factory, Kashima, 210x55mm
Fork
Fox 38 Factory, Grip 2 damper, 29", 160mm travel, Kashima, 44mm offset
WEIGHT
Weight
22.55kg (49 lb, 11.4 oz)
Weight Size
S4
